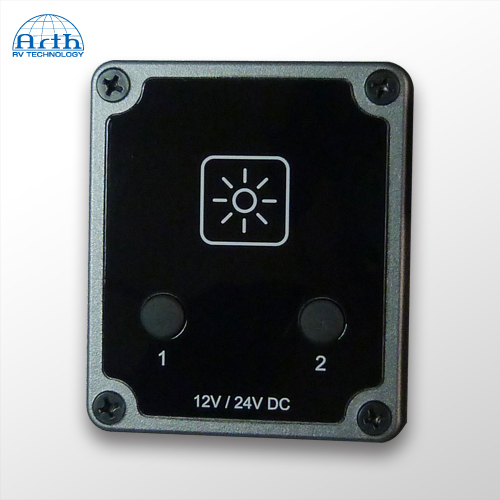

DIM-T08PMnew

10 Levels Dimmer

Product Name ： 10 Levels Dimmer
Model NO.: DIM-T08PM
Description:
  • 12VDC/ 24VDC
  • 2 groups of 5 amp dimmers in one panel
  • Adjusts the brightness by 10 levels.
Price: US$

Specifications

Product Name 10 Levels Dimmer
Model NO. DIM-T08PM
Installation

Panel mount（It’s necessary to make a rectangular hole).
Printed words/ Color

White printed words/ Black Nameplate.
Customized design is possible.
Adjust

Push button.
Adjusts the brightness by 10 levels.
Size (mm) W56xH66xT45
Thickness in the front =16.0mm after installed.
Hole size(mm) W42xH49
Input Voltage 12VDC/ 24VDC
Description
  • 2 groups of 5 amp dimmers in one panel.
  • Adjusts the brightness for LED Lights/Bulbs/Halogen Lights.
  • Brightness: 0%～100%.
  • Using double terminal in 4 of total 6 wires to connect the maximum of 8 lights.
